Custom PV Solar Mounting Structure | Tracking, Trough & Dish Support
$1,000.00
Utility-scale and commercial photovoltaic (PV) solar mounting structures, including fixed-tilt ground mounts, single/dual-axis tracking systems, and concentrated solar power (CSP) supports.
Technical Specifications

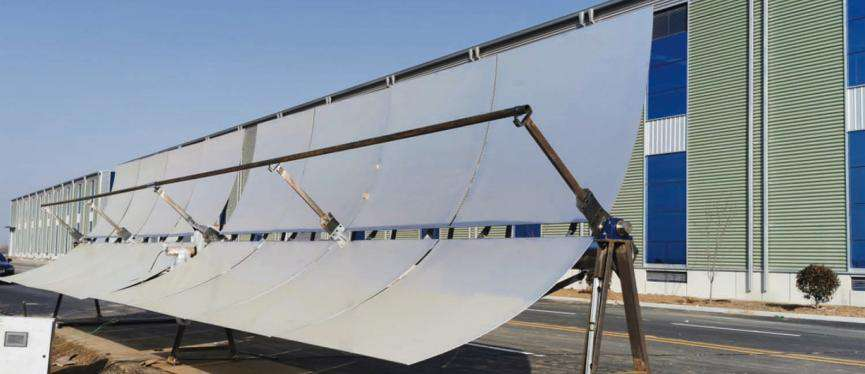

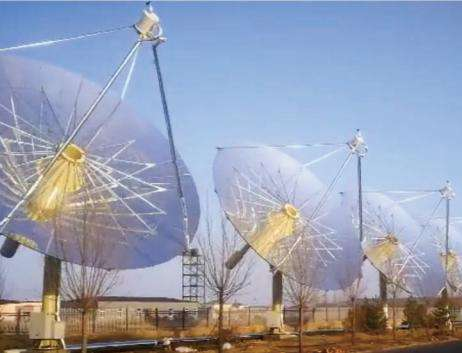

| System Types | Single-Axis Tracker, Dual-Axis Tracker, Fixed-Tilt Ground Mount, Solar Carport, Trough & Dish Support |
| Steel & Material Grades | Q235B, Q355B high-tensile structural steel, Zn-Al-Mg (ZAM) alloy, Anodized AL6005-T5, SUS304 hardware |
| Surface Anti-Corrosion | Hot-Dip Galvanizing (ISO 1461, ≥65–85μm) or Zinc-Aluminum-Magnesium (ZAM 310/430g/m² with self-healing edges) |
| Core Components | Octagonal / Round Torque Tubes, Ramming Piles (C/U/H Posts), Crossbeams, Rails, Custom Stamping Brackets |
| Fabrication Precision | CNC continuous roll-forming and laser hole punching with tolerance ≤ ±0.1mm |
| Design Standards & Codes | AS/NZS 1170, Eurocode 1/3, IBC, AISC, JIS C 8955, IEC 61215 structural compliance |
| Environmental Resistance | Wind load resistance up to 60 m/s (216 km/h); Snow load resistance up to 1.6 kN/m²; C4/C5 coastal corrosion rating |

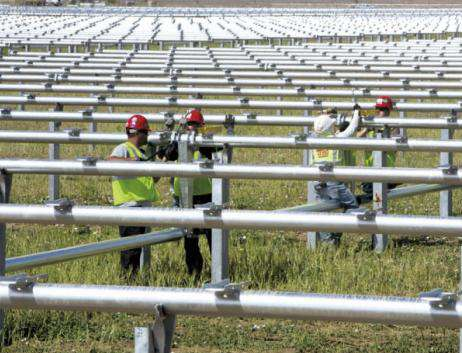

| Foundation Compatibility | Driven pile, ground screw, precast concrete block, or cast-in-place concrete footings |
| Production Capacity | Over 500 MW monthly production across automated roll-forming and welding lines |
| Lead Time | 15–25 days for standard utility / commercial projects |
| Port of Loading | Qingdao Port, China |
Why Choose Sunway Solar Racking
- Engineered for Extreme Climates — Tested and deployed in desert, coastal, high-wind, and heavy snow environments worldwide.
- Fast On-Site Assembly — Pre-punched slotted profiles and standardized fasteners reduce installation labor costs by up to 30%.
- Full OEM/ODM Capability — Custom tooling, bracket stamping, and torque tube manufacturing tailored to tracker motor interfaces.
Applications: Utility-scale ground PV plants, agrivoltaic farms, commercial rooftop solar, solar carports, concentrated solar thermal (CSP).
Need a customized mounting quotation?
Send your solar module layout, soil report, and local wind/snow data for engineering support and factory-direct pricing within 24 hours.
